HDK development flow

Setting up the HDK development environment

On the instance you just created, run the following command to perform the initial configuration:

Download the aws-fpga repository under /home/centos/, which is an HDK &SDK environment.

$ git clone https://github.com/aws/aws-fpga.git ~/aws-fpga

Next, follow these steps to set preferences for HDK use:

$ cd ~/aws-fpga

$ source hdk_setup.sh

You need to start hdk_setup.sh every time you open a new terminal

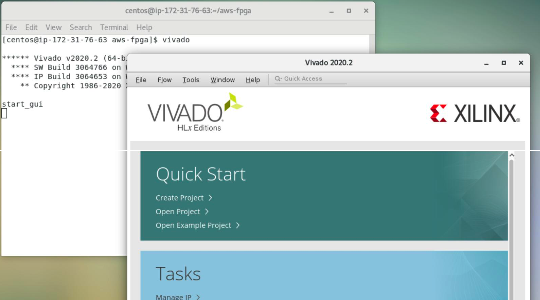

In the GUI environment, let’s make sure that vivado is up

$ vivado

vivado-startup

In this exercise, it is not mandatory to use the GUI environment. You can proceed in either CUI or GUI environment.

Review the Hello World sample

Various sample code is installed through setting up the HDK development environment.

We recommend that you start the development of your own custom logic and host application software by copying the sample code with reference to the sample code.

In this hands-on, you will learn how to implement Hello World sample code (called L-Chica) on an F1 instance and experience a series of steps from build to execution.

$ echo $HDK_DIR

$ cd $HDK_DIR/cl/examples/cl_hello_world

https://github.com/aws/aws-fpga/tree/master/hdk/cl/examples/cl_hello_world

Practice accessing basic memory-mapped registers

This sample accesses two registers connected to the OCL AXI-L interface in the appPF BAR0 memory space. It also uses the Virtual LED and Virtual DIP Switch.

Hello World Register (offset 0x500):

32-bit read/write register

Virtual LED Register (offset 0x504):

16-bit lead-only register
Reflects the lower 16 bits of Hello World Register

accessing-basic-memory-mapped-registers

Check the contents of cl_hello_world.sv and test_hello_world.c

~/aws-fpga/hdk($HDK_DIR)
|---- cl
    |---- developer_designs # Your own CL is developed here. It is recommended to copy the following designs and start developing.
    |
    |---- examples
       |
       |---- cl_hello_world ($CL_DIR)
          |
          |---- build
          |
          |---- design # Custom logic executed on FPGA
          |   |---- cl_hello_world_defines.vh
          |   |---- cl_hello_world.sv
          |   |---- cl_id_defines.vh
          |
          |---- software
          |   |---- runtime # Runtime that runs on the host
          |   |   |---- Makefile
          |   |   |---- test_hello_world.c
          |   |
          |   |---- verif_rtl
          |
          |---- verif

Now, check the contents of cl_ports.vh

~/aws-fpga/hdk($HDK_DIR)
|---- cl
|   |---- developer_designs # Your own CL is developed here. It is recommended to copy the following designs and start developing.
|   |
|   |---- examples
|
|---- common
    |---- shell_stable ($HDK_SHELL_DIR) # Shell running on FPGA
    |   |---- design
    |      |---- interfaces
    |         |---- cl_ports.vh
    |
    |---- software

hello world source code

test_hello_world.c (host application code)

#define HELLO_WORLD_REG_ADDR UINT64_C(0x500)
#define VLED_REG_ADDR UINT64_C(0x504)

int main(int argc, char **argv)
{
   uint32_t value = 0xefbeadde;
   rc = fpga_mgmt_init();
   rc = check_afi_ready(slot_id);
   rc = peek_poke_example(value, slot_id, FPGA_APP_PF, APP_PF_BAR0);
}

int peek_poke_example(uint32_t value, int slot_id, int pf_id, int bar_id) {
   pci_bar_handle_t pci_bar_handle = PCI_BAR_HANDLE_INIT;
   rc = fpga_pci_attach(slot_id, pf_id, bar_id, 0, &pci_bar_handle);
   uint32_t expected = byte_swap(value);
   rc = fpga_pci_poke(pci_bar_handle, HELLO_WORLD_REG_ADDR, value);
   rc = fpga_pci_peek(pci_bar_handle, HELLO_WORLD_REG_ADDR, &value);

if(value == expected) {
   printf("TEST PASSED");

Excerpt code for reviewing content. The actual code contents refer to the real file

cl_hello_world.sv (FPGA kernel code)

//-------------------------------------------------
// Wires
//-------------------------------------------------
  logic        arvalid_q;
  logic [31:0] araddr_q;
  logic [31:0] hello_world_q_byte_swapped;
  logic [15:0] vled_q;
  logic [15:0] pre_cl_sh_status_vled;
  logic [15:0] sh_cl_status_vdip_q;
  logic [15:0] sh_cl_status_vdip_q2;
  logic [31:0] hello_world_q;
...
//--------------------------------------------------------------
// PCIe OCL AXI-L Slave Accesses (accesses from PCIe AppPF BAR0)
//--------------------------------------------------------------
// Only supports single-beat accesses.

   logic        awvalid;
   logic [31:0] awaddr;
   logic        wvalid;
...
//-------------------------------------------------
// Hello World Register
//-------------------------------------------------
// When read it, returns the byte-flipped value.

always_ff @(posedge clk_main_a0)
   if (!rst_main_n_sync) begin                    // Reset
      hello_world_q[31:0] <= 32'h0000_0000;
   end
   else if (wready & (wr_addr == `HELLO_WORLD_REG_ADDR)) begin
      hello_world_q[31:0] <= wdata[31:0];
   end
   else begin                                // Hold Value
      hello_world_q[31:0] <= hello_world_q[31:0];
   end

assign hello_world_q_byte_swapped[31:0] = {hello_world_q[7:0],   hello_world_q[15:8],
                                           hello_world_q[23:16], hello_world_q[31:24]};

Excerpt code for reviewing content The actual code contents refer to the real file

cl_ports.vh (FPGA kernel code)

...
51 output logic[31:0] cl_sh_id1,                //15:0 - PCI Subsystem Vendor ID
52                                              //31:16 - PCI Subsystem ID
53
54 input[31:0] sh_cl_ctl0,                      //Functionality TBD
55 input[31:0] sh_cl_ctl1,                      //Functionality TBD
56
57 input[15:0] sh_cl_status_vdip,               //Virtual DIP switches.  Controlled through FPGA management PF and tools.
58 output logic[15:0] cl_sh_status_vled,        //Virtual LEDs, monitored through FPGA management PF and tools
...
68  //-------------------------------------------------------------------------------------------
69  // PCIe Master interface from CL
70  //
71  //    AXI-4 master interface per PCIe interface.  This is for PCIe transactions mastered
72  //    from the SH targetting the host (DMA access to host).  Standard AXI-4 interface.
73  //-------------------------------------------------------------------------------------------
74  output logic[15:0] cl_sh_pcim_awid,
75  output logic[63:0] cl_sh_pcim_awaddr,
76  output logic[7:0] cl_sh_pcim_awlen,
77  output logic[2:0] cl_sh_pcim_awsize,

line 57: Can be accessed using FPGA management tool In this sample code, it is defined as a function to mask the signal from the Virtual LED register
line 58: In this sample code, defined as a signal from a register that reflects the lower 16 bits of Hello World Register

~/aws-fpga/hdk/cl/examples/cl_hello_world ($CL_DIR)
|
|---- build
|   |---- checkpoint
|   |    |---- to_aws  # Here the files needed to generate the AFI are generated
|   |
|   |---- constrains # Timing, clock, and placement constraints are described here
|   |---- reports
|   |---- script
|   |   |---- aws_build_dcp_from_cl.sh # script to run to create a dcp file
|   |   |---- create_dcp_from_cl.tcl
|   |   |---- encrypt.tcl
|   |
|   |---- reports
|   |---- src_post_encryption # Encrypted files are placed here

Check the contents of aws_build_dcp_from_cl.sh

Files required for HDK development

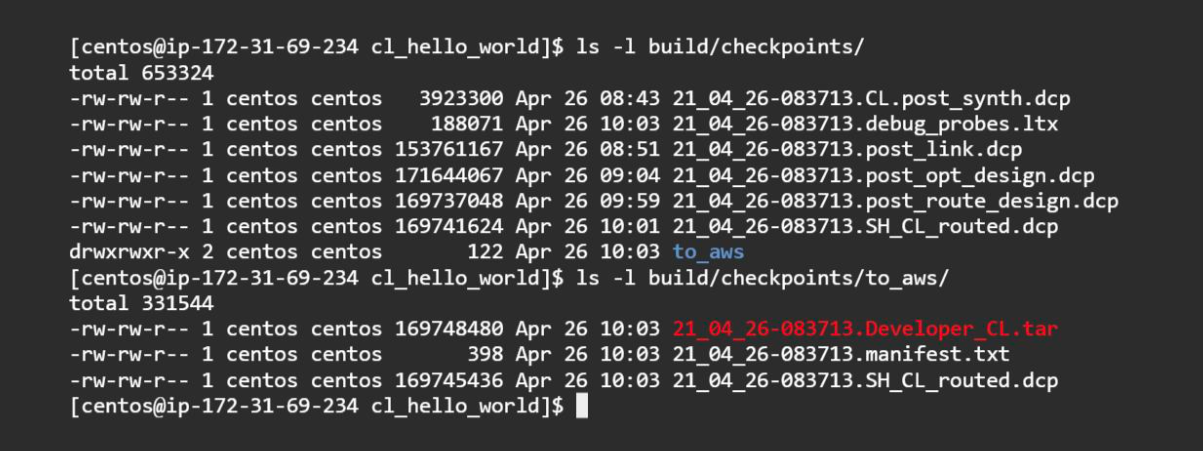

Run aws_build_dcp_from_cl.sh to run a series of flows up to generating a Design CheckPoint (dcp) file.
For proper execution, the following conditions must be met:
- $HDK_SHELL_DIR and $CL_DIR are set correctly
- $CL_DIR must have a /build subdirectory
- The /build directory has the following subdirectories /constraints, /scripts, /src_post_encryption, /reports, checkpoints/to_aws
- $cl_dir/build/script/encrypt.tcl is updated according to design. Include all source files
  - Source files containing header files are encrypted and placed under src_post_encryption
- Updated timing restrictions etc. according to design in the $cl_dir/build/constraints directory
- Updated $cl_dir/build/scripts/create_dcp_from_cl.tcl according to design. Update IP sources, xDC files, and design-specific xdc files
